Heart Rhythm


We can define Heart Rhythm as the succession of heart beats. In the case of an Electrocardiogram, we would speak of the succession of QRS complexes during the time in which the EKG is taken

Heart Rhythm is usually regular and with a Heart Rate within normal (60–100 bmp), although certain diseases (see Arrhythmias) may cause the Heart Rhythm to be irregular, too fast or too slow.


Regular Heart Rhythm

The first step in the Heart Rhythm analysis is to determine whether it is regular or not. To do so we must measure the distance between two consecutive R waves (RR Interval). When the rhythm is regular this distance is similar between heart beats.

Usually we can determine whether the heart rhythm is regular or not by just looking at it, but when in doubt, we can use a compass or ruler.

Irregular Heart Rhythm

Irregular Heart Rhythm


Normal Sinus Rhythm

Related Article: How to recognize Normal Sinus Rhythm

The Sinus Rhythm is the normal rhythm of the heart. It is produced by the Sinus Node, stimulating both atria, the AV node and from there to the ventricles through the Bundle of His (See Cardiac Conduction System).

Conduction System of the Heart

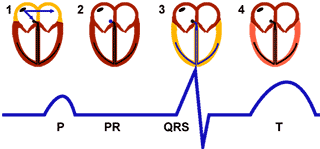

Sinus Rhythm
  • 1- Sinus stimulation, Atrial depolarization (P Wave)
  • 2- Spread of electrical impulse through AV node (PR segment)
  • 3- Ventricular Depolarization (QRS)
  • 4- Ventricular Repolarization (T Wave)

To determine if an electrocardiogram represents a Normal Sinus Rhythm, the following requirements must be met:

  • Positive P wave in lead II and negative P wave in aVR.
  • Each P wave must be followed by a QRS complex.
  • The RR interval must be constant.
  • The PR Interval must be equal to or greater than 0.12 s.
  • Heart Rate must be between 60 and 100 bpm.

In short, if the EKG represents a sinus P wave, always followed by a QRS complex, with normal PR interval and Heart Rate, it returns a report of Sinus Rhythm.

Related Article: How to recognize Normal Sinus Rhythm

Sinus Tachycardia and Sinus Bradycardia

When Heart Rate is greater than 100 bpm, we call it Tachycardia. When Heart Rate is less than 60 bpm, we call it Bradycardia.

Sinus Tachycardia

Sinus Tachycardia does not usually stand for cardiac involvement, it occurs in healthy people with exercise. It also occurs as secondary to diseases requiring increased oxygen consumption, such as infections, shock or Myocardial Infarction.

Sinus Tachycardia

Sinus Tachycardia at 136 bpm

The ECG meets all requirements for Sinus Rhythm, except for the heart rate, which is greater than 100 bpm.

Sinus Bradycardia:

Sinus Bradycardia does not always mean heart disease. It is common in athletes and patients with medication that slows the Heart Rates (Beta blockers, Antiarrhythmic Drugs)

Sinus Bradycardia

Sinus Bradycardia at 48 bpm

The ECG meets all requirements for Sinus Rhythm, except for the heart rate, which is less than 60 bpm.

When Sinus Bradycardia presents with very low heart rates or it is symptomatic (dizziness, syncope), with no medication to explain it, Sick Sinus Syndrome or other bradyarrhythmias must be confirmed or ruled out.


Sinus Arrhythmia

Sinus Arrhythmia is a Sinus Rhythm with varying PP intervals that gradually and cyclically lengthen and shorten, in relation with the phases of breathing.

Sinus Arrhythmia

Sinus Arrhythmia:
Varying PP Intervals in relation with the phases of breathing.

It is usually asymptomatic and occurs more often in children and young people. It is secondary to a physiologic mechanism, so it is therefore considered a normal rhythm or a Sinus Rhythm variation.


Arrhythmias

Heart Arrhythmias are heart rhythm disorders that in most cases differ from Sinus Rhythm. We have a section dedicated to them, don’t forget to check it.
